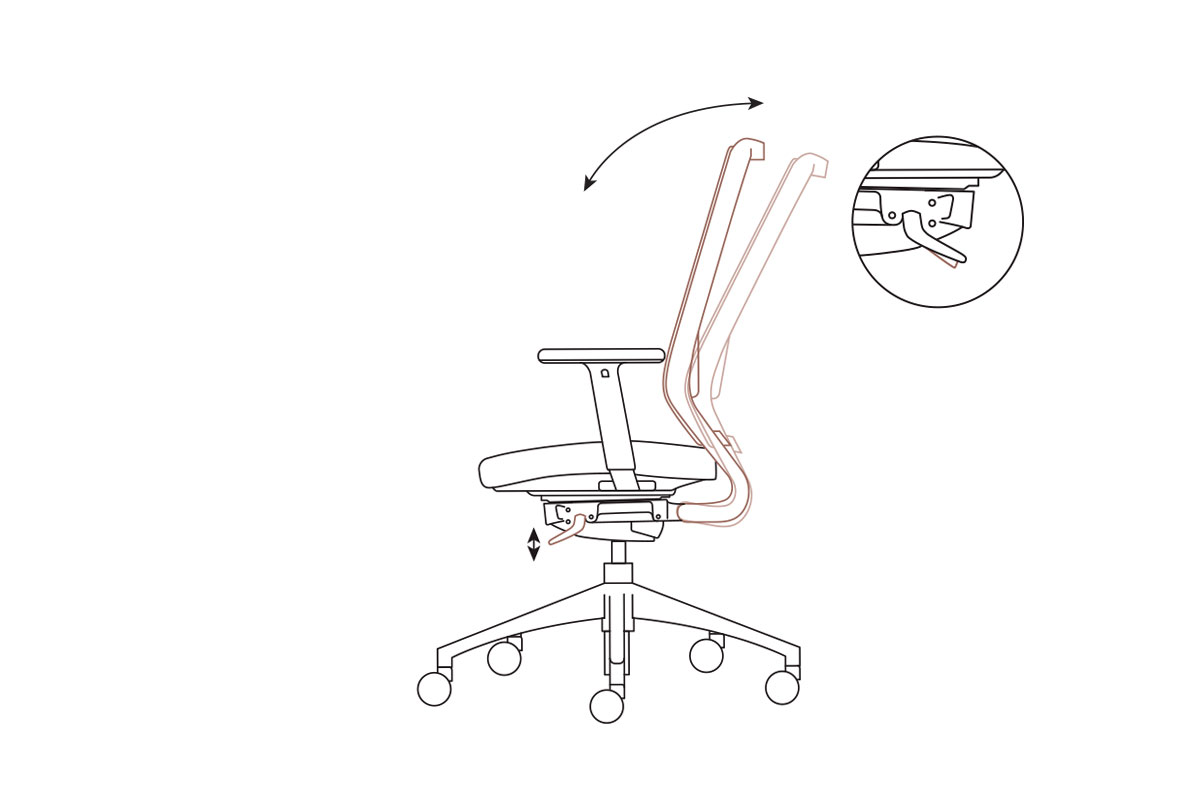

Ventillo Task Chair Back Lock Adjustment

Back Lock

Control Location: Left hand side of the chair.
To lock the back, push the lever down. To use the chair in free-float mode, ensure the lever is in its neutral position. To adjust the back into one of the 4 positions, put the chair in free float mode, push on the back support to your desired position and relock by pushing the lever down.

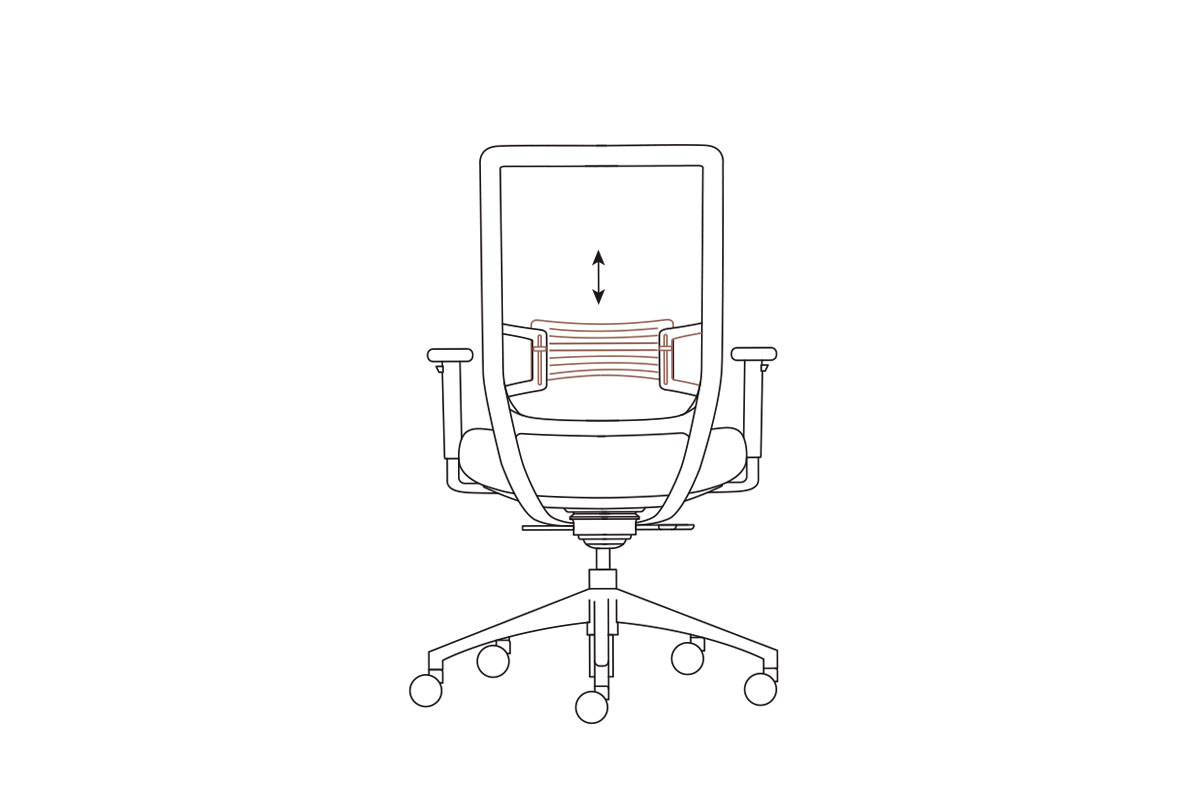

Ventillo Task Chair Lumbar Adjustment

Lumbar Adjustment

Control Location: Back of the chair
To adjust the lumbar support, use both hands and reach around the back of the chair. Pull up or push down the lumbar panel using equal pressure on the two tabs until at the desired position.

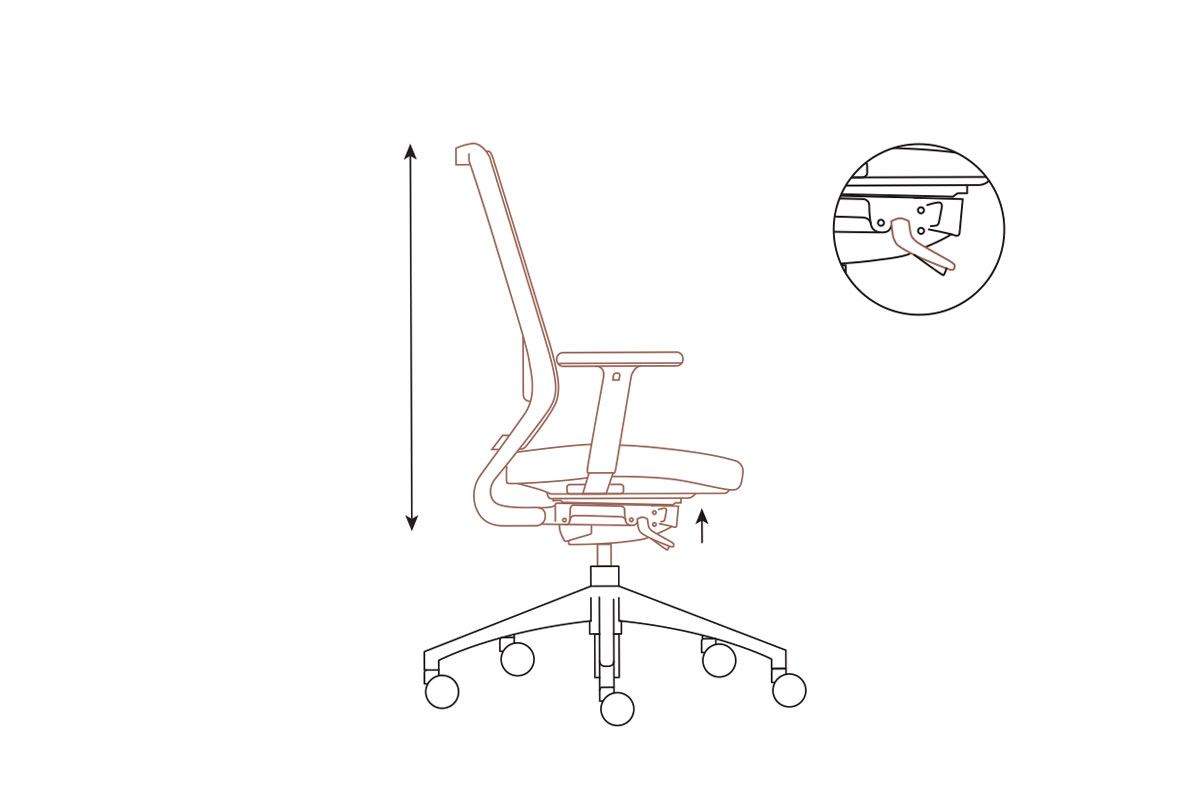

Ventillo Task Chair Seat Height Adjustment

Seat Height

Control Location: Right hand side of the chair
To adjust the height of the chair, pull the outside lever upwards and release when at the desired height. If the user is sitting on the chair, the seat will go down. Remove the weight from the seat to adjust the seat up.

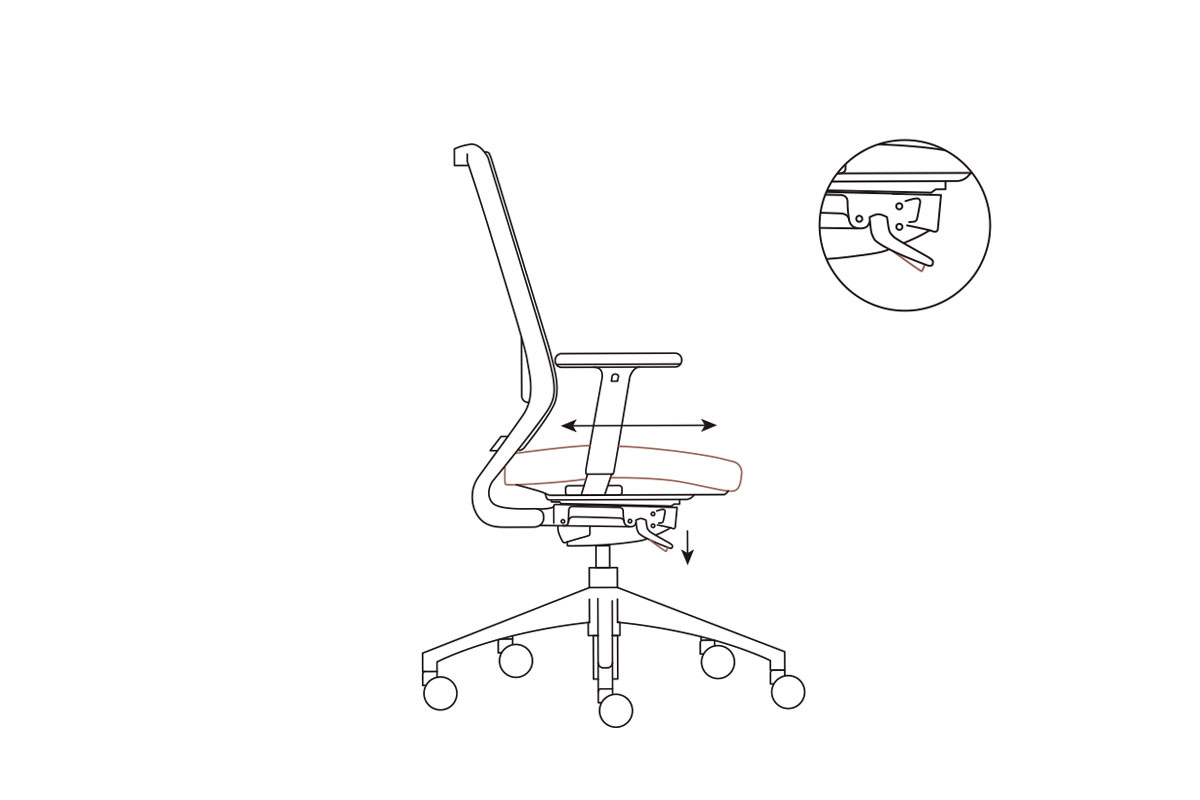

Ventillo Task Chair Seat Depth

Seat Depth

Control Location: Right hand side of the chair
To adjust the seat depth of the chair, sit on the chair and push down the inside lever. Slide the seat and release when at the desired depth.

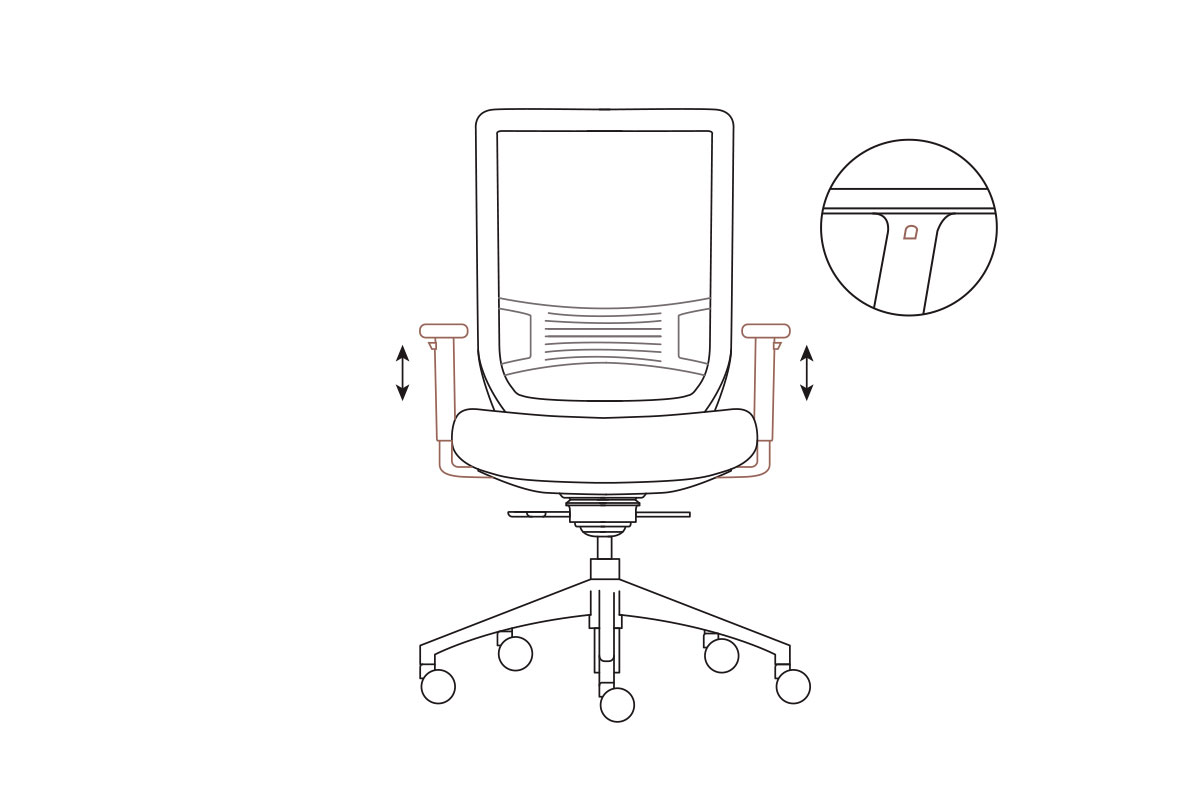

Ventillo Task Chair Height Adjustable Arms

Armrest Height

Control Location: Outside of arms
To adjust the arm height up or down, press and hold the control whilst pushing the arm up or down and release when at the desired height.

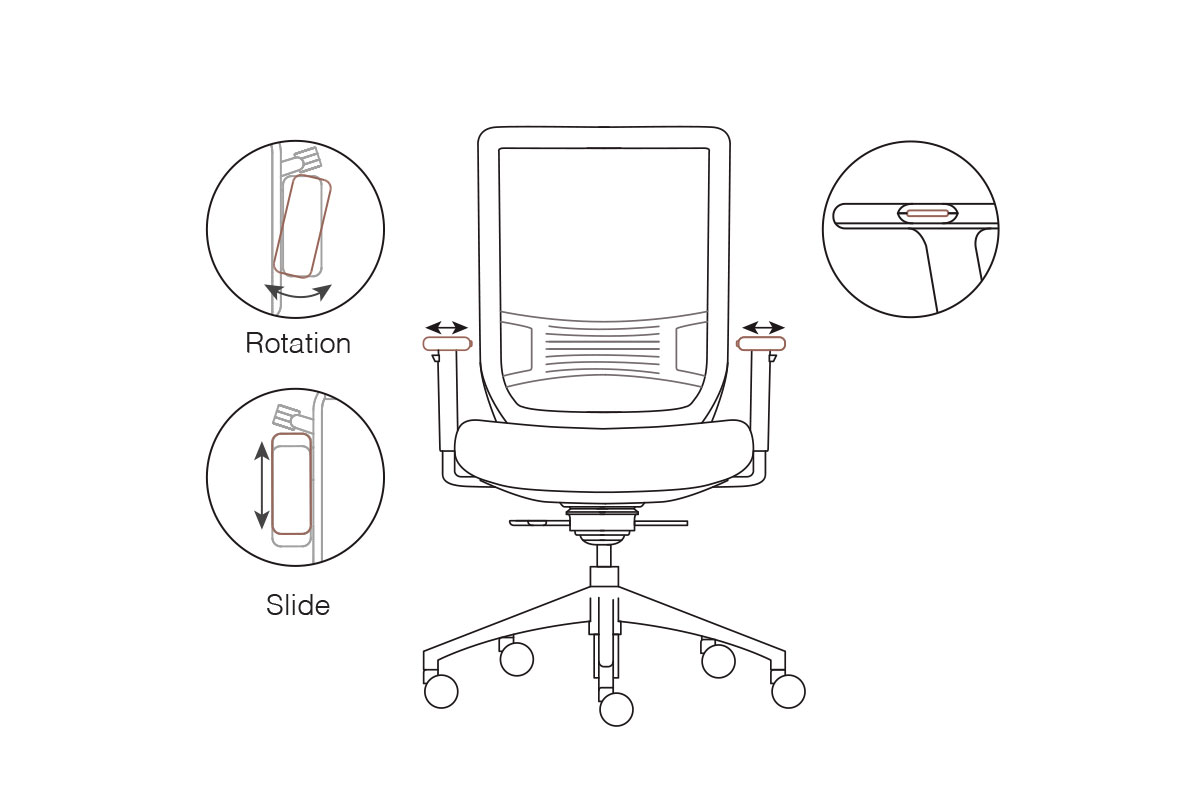

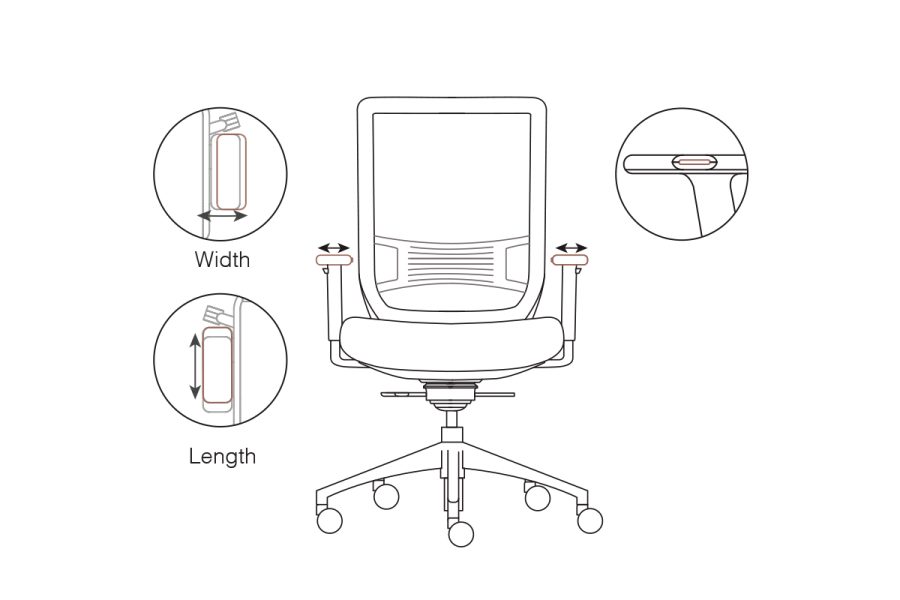

Ventillo Task Chair Armrest Adjustment

Armpad Rotation, Width & Slide (Optional)

Control Location: Inside of arms
To rotate or adjust the width of the armpad, press and hold the control whilst rotating the armpad in or out/ pushing in or out the armpad. Release when at the desired position.

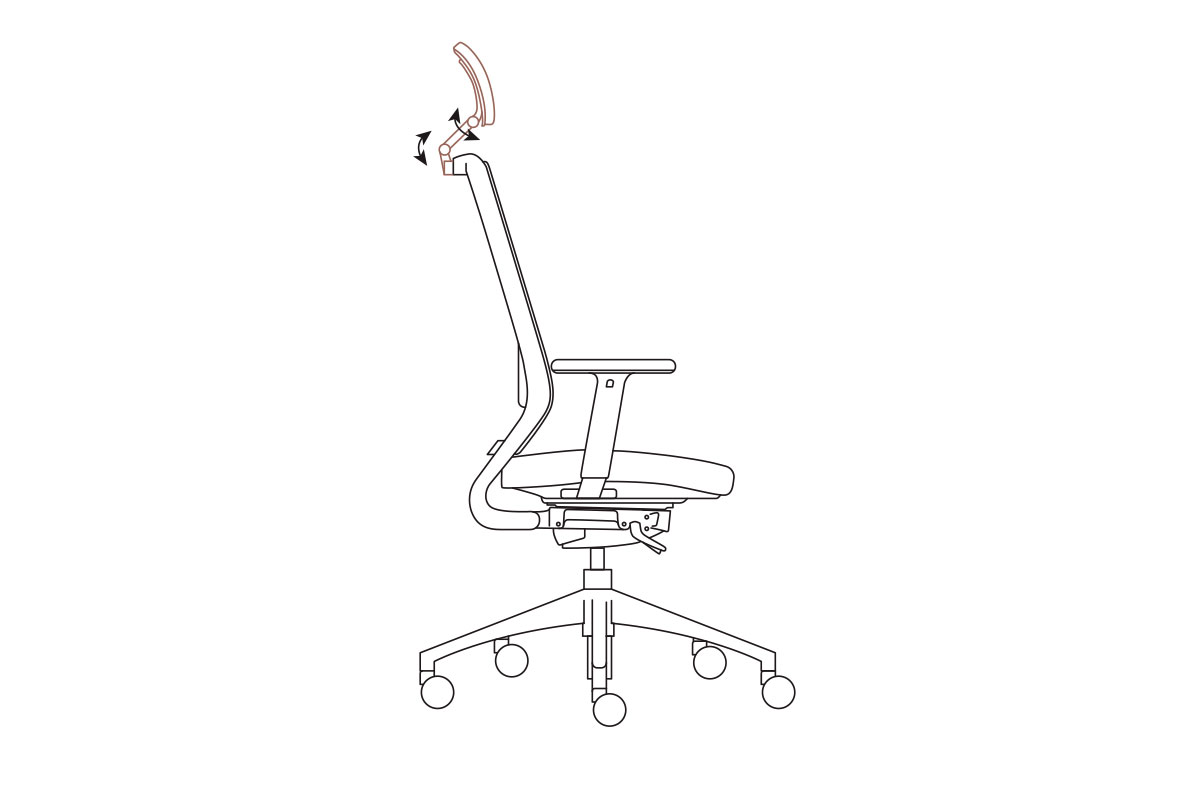

Ventillo Task Chair Headrest Adjustment

Headrest Height & Depth (Optional)

Control Location: Headrest
Using the two pivot design, adjust the headrest forwards and backwards.
